A
display comes from easy install and selected for driving. RM-7 displays
5 categories information for racing. You can concentrate on driving,
because RM-7 does not display useless information. The model which many
drivers used habitually added a method of wiring to easy install. From
full-scale race like a circuit and a rally to an eco-driving, you can
use this device at many fields.
Shift Lamp Setting
Sequential Point
Engine
Revolution Display
Water Temp Display
2000 ~ 9900 rpm, 100 rpm unit
First lamp go on at 1000 rpm before setting,
Second lamp go on at 500 rpm before setting
0 ~ 9900 rpm, 100 rpm unit
-40 ~ 150 °C, 1 °C unit
Speed Display
Gear Position Display
Lamp Color
Size
0 ~ 255 km/h, 1 km/h unit ( For NISSAN car is 2
km/h unit )
Digital display for all gears♦2 ( For some models only AT
)
Red or Blue
51(W) x 35(H) x 22(D) mm

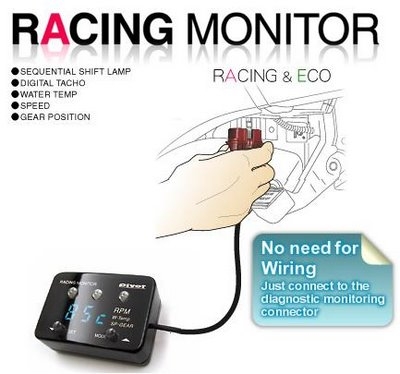

How to Wire
Brightness Adjustment
Function
Connect with coupler to diagnostic
monitoring connector
Shift Lamp comes with brightness adjustment
function
